Hermod dead LCD display changed with a biger one

Hermod
1

Hello dear Hermod users.

As my Hermod display was almost dead !

I decided to replace it with a “big” display (about 1.7 times bigger) !

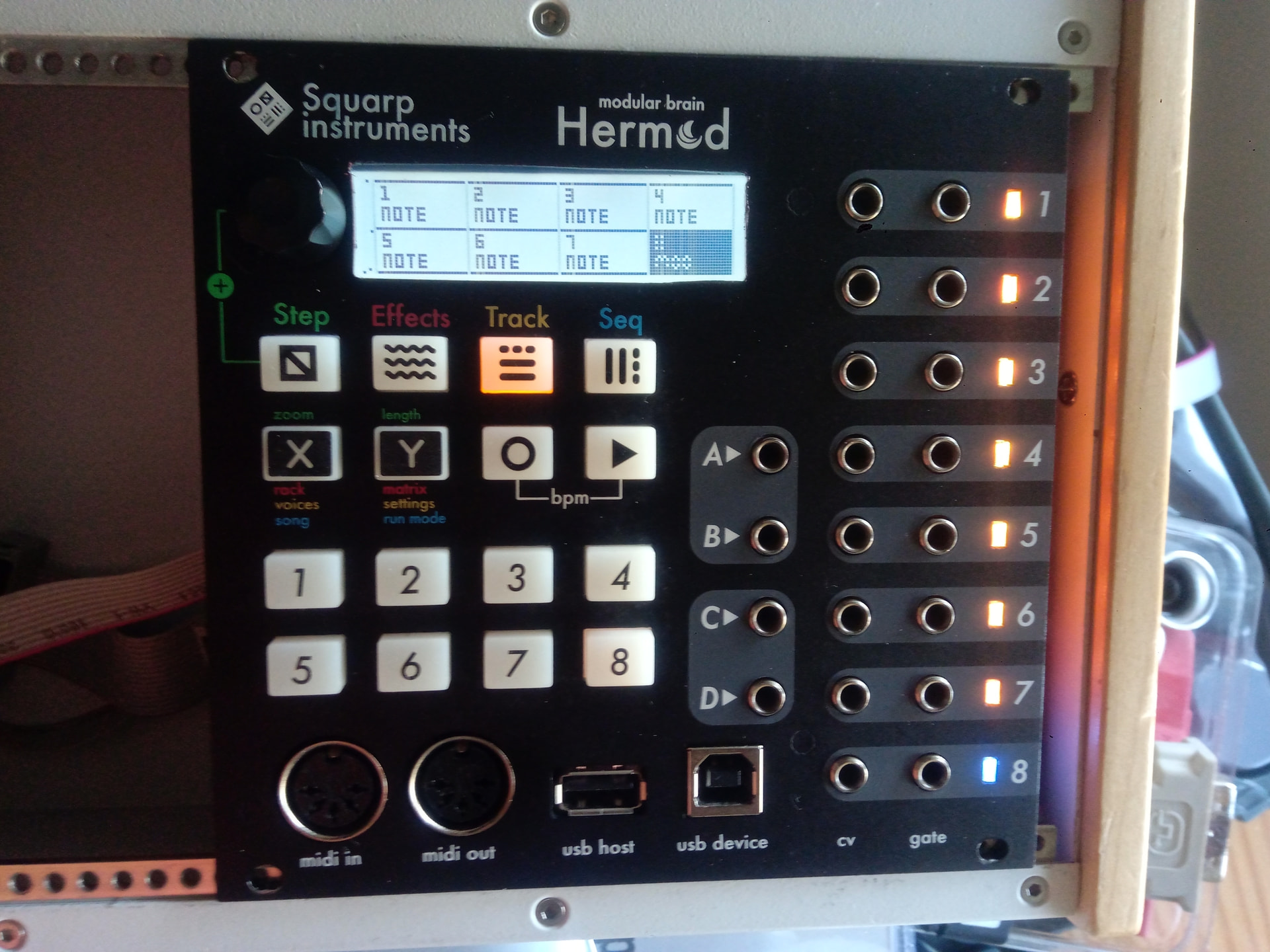

Here is the end result:

IMG_20260527_100304
IMG_20260527_1003041920×1440 448 KB

As far as I understand, this first version of the Hermod is no longer supported by Squarp Instruments. So, If this information can help someone facing a similar issue, I’d be happy to share the details of this DIY repair/modification.

1 Like
2

Hello, I would love to know how you managed to do this. I was hesitant to upgrade to Hermod+ just to have a more readable screen!

3

Sorry for the delay in replying.

You can read the details of what i did on my Github pages.

github dot com / jojo535275 / hermod-lcd-upgrade
