5V Gate signal to 8V or 10V

Hapax
1

Hi,

Would like to use Hapax Gate outputs to trig Gate Inputs of my Solar VCO voices which accept at least 8V.
I don’t want to buy eurorack modules.

What solutions are available to me ?

Thanks :wink:

2

I think about a passive mixer like this would do the trick if I sum 2 Hapax Gate output signals to the mixer output which will trig the Solar Gate In.

3

Answer to myself : no, it won’t work with a passive mixer or a passive multi :sweat_smile:

4

  1. One workaround would be to use an “AND” logic gate.
    You could hijack a VCAs, which do implement AND logic (logic output is high if both inputs are high). If you can feed a constant voltage, say +10V in a VCA, and the GATE out of Hapax into the volume control.

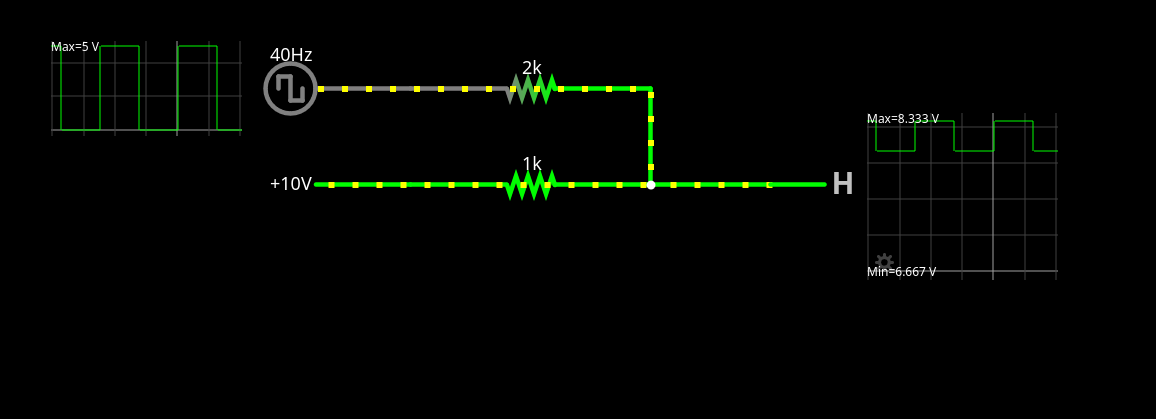

  2. I don’t recommend using passive mixers, but it could work, depending on how your VCO fires. If it’s just a matter of crossing the 8V threshold, then mixing the GATE out with a constant +10V might get you there (you’d need to have more resistance on the GATE path, however, to correctly lift the output above 8V.

    Screenshot_20240213_155450
    Screenshot_20240213_1554501156×419 12.2 KB

1 Like
5

Thank you @Thibault_Squarp :pray:
